72V 3000W Brushless Motor Kit with 24 Mosfet 50A Controller and Throttle for Electric Scooter E bike Engine Motorcycle DIY Part Conversion Kit (6 part in 1 and motor with foot)

3000W Brushless Motor

Brushless DC motor with low noise, smooth operation, long service life and low maintenance cost.

?

• The running direction of the motor can be changed by changing the wiring between the motor and the controller (reverse-counterclockwise) :

?

Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue;

Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged.

HIGH SPEED 4900 - 6700RPM

High-speed Brushless electric motor

Rated Speed: 4900r/min, No-load test max speed up to 6700r/min, use 50A controller full charge.

The load speed is affected by other factors, please refer to the actual test results.

POSITIVE & NEGATIVE ROTATION DESIGN

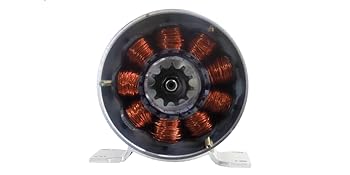

All aluminum body copper movement, High-Quality Rator with 6 pair magnet, Electric Motor with Forward and Reverse Design, Motor clockwise Running is the correct direction, counterclockwise is the recersing.

T8F 11T SPROCKET, AND WITH RADIATING HOLES

THE Electric Brushless DC Motor Wit 8/10mm axle, And With T8F Model 11 teeth Sprocket, it Fit With T8F Chain, the axle is also fit with 25H Sprocket , but must be changed by yourself.

THE Mid motor Face and Rear face with some radiating holes for motor cooling.

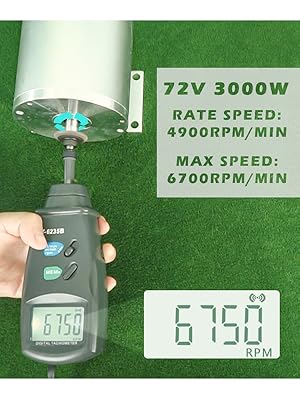

Kunray 3000W Motor Testing Report

Kunray 3000W motor Testing,

We will strictly complete the test for each motor when it leaves the factory to ensure that there is no problem with the quality.

3 Speed Handlebar & Foot Pedal Throttle

3 Speed handlebar:

low - mid - high speed switch,

forward & reverse switch,

3 functions in 1 throttle.

Foot pedal throttle:

Pedal with base, more suitable for karts, more convenient to operate.

24MOS 50A 3000W BRUSHLESS CONTROLLER

Brushless motor controller 50A,

the controller can fit with 48-72V battery, 3000W rated power.

but for the motor suggest you use the 72V motor, it can let motor put-out full power.

Phase Degree: 120 , Smart Controller Can Work With Hall Sensor And Without Hall Motor, Brushless Motor Speed Controller, E-Brake, 3-Speed (Low Mid High Speed , Reverse Functions, Indicator Light And Power Lock Functions.

Mid Motor Applications Wide

The E-Motor is Good for Electric Scooter, E-bike, Mini Motorcycle,Dirt bike, Electric Go karts, Bicycle, Quad car Other DIY project and more.
