Heavy Ranger MUTT Universal Portable and Water-Resistant Trailer Light Tester with 7-Way Round Pin Arrangement
-
Detail
Power Source Hand Powered Style Circuit Testers Color Factory Item Weight 1 Pounds - Test 7–way round pin
- Short circuit protection
- Turn signal simulation & power verification LED
- Includes Trickle Charger
- Water resistant with an internal battery compartment (Battery not included)

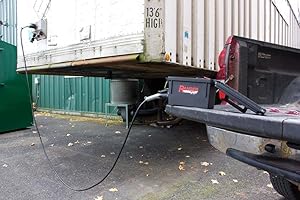

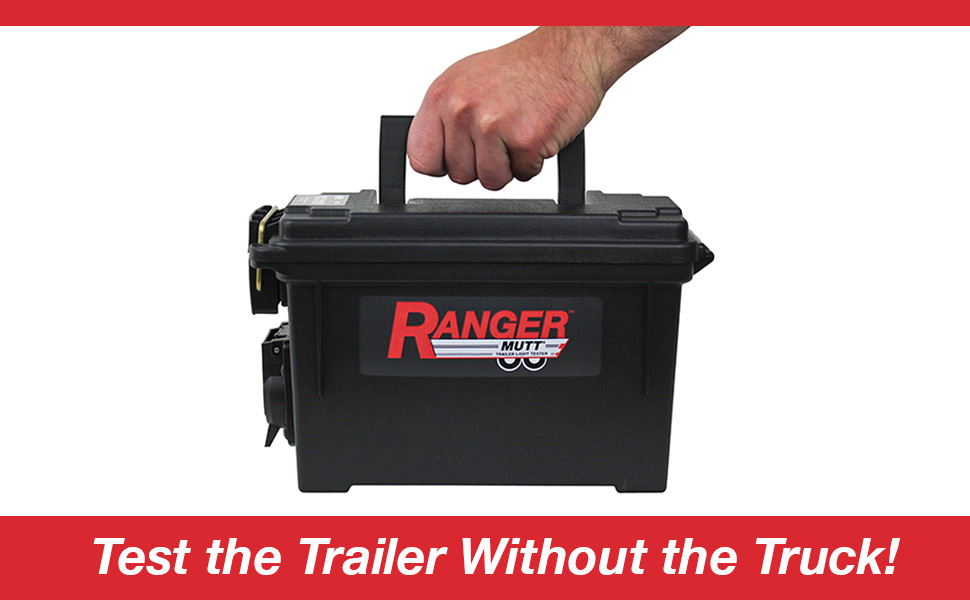

Test the Trailer Without the Truck!
The Ranger MUTTs are commercial or utility/RV trailer light and electric brake testers that reduce guesswork and save time by powering each trailer electrical circuit on 7-flat, 6-round, 4/5 pin (#9101) or 7-way round pin (#9102) arrangements. This allows for proper verification of wiring configuration, ground integrity, short circuit and overload conditions, along with electric brake operation and turn signal simulation. Each Ranger MUTT features a water resistant, rugged design and features an internal battery compartment and external 12V power port which can be used as a memory saver, test light supply or trickle charge input.
#9101 Light Ranger MUTT (Mobile Universal Trailer Tester)

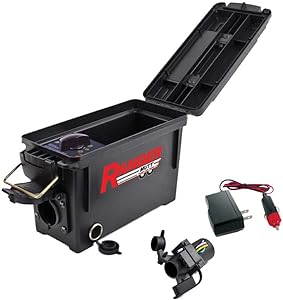

The Light Ranger Mobile Universal Trailer Tester (MUTT) is a portable and water-resistant trailer light tester and trailer brakes tester that allows the user to perform all testing functions without the use of the vehicle. For 7-way spade, 6-way round and 4/5 pin trailer harnesses, the Light Ranger MUTT simulates all electrical circuits of standard towing vehicles for boating, RV, landscaping, hunting and similar type light duty trailers. Included with each tester is a battery charger and 3-way trailer harness adapter.
- RV and Utility Type Trailer Tester for 7-Way Spade, 6-Way Round, and 4/5 Pin Configurations
- Includes 500mA Battery Charger and 3-Way Trailer Adapter
#9102 Heavy Ranger MUTT (Mobile Universal Trailer Tester)

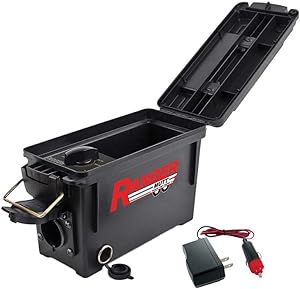

The Heavy Ranger MUTT is a commercial trailer light and electric brakes tester that reduces guesswork and saves time by powering each trailer electrical circuit in 7-way round pin arrangements. This allows for proper verification of wiring configuration, ground integrity, short circuit and overload conditions, along with electric brake operation and turn signal simulation. The Heavy Ranger MUTT features a water resistant, rugged design and features an internal battery compartment and external 12V power port which can be used as a memory saver, test light supply or trickle charge input.
- Commercial Type Trailer Tester for 7-Way Round Pin Configurations
- Includes 500mA Battery Charger
- Short circuit protection
- Turn signal simulation and power verification LED
- Durable and water resistant
- Includes trickle charger

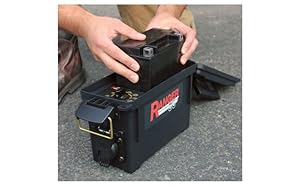

- Internal battery compartment (battery not included)
- 500mA Battery Charger 3
- -Way Trailer Adapter F
- or 7-way spade, 6-way round and 4/5 pin trailer harnesses 5
- 00mA Battery Charger F
- or 7-way round pin
Specifications
- Input - 12V DC
- Outout - 10A @ 12V DC
- Battery Required - Yes (Not included)
- Battery Dimensions - 5 7/8" L x 3 3/8" W x 5 3/4" H (Yuasa YTX14 or Simular)
- Overload Protection - Automatic Resetting Internal Breaker
- Controls - Manual Control Knob
- Materials - ABS
- Weight - 2 lbs. (empty)
-
